8 Piece 5/8" Heim Joint Rod End Kit with Misalignment Spacers - Fits 1.25" OD .095 Wall Tube - Heavy Duty Suspension Steering for UTV, Rock Crawler, Sand Rail & Hot Rod - Perfect for 4-Link Tie Rod Fabrication & Off-Road Vehicle Upgrades [6101B15]

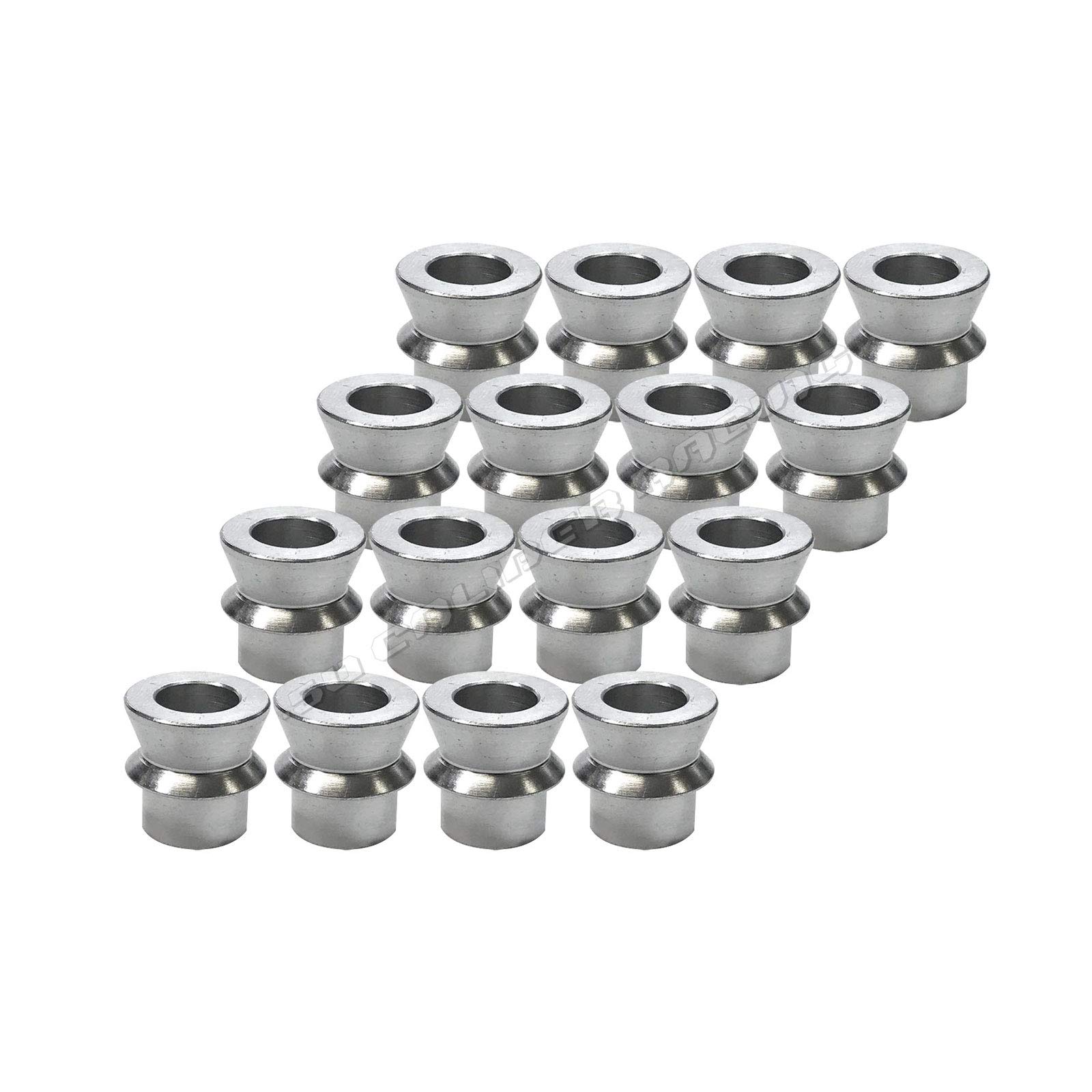

Chromoly Rod End Kit - 5/8"-18 Heim Joint, Fits 1.25" OD .095 Wall Round Tube Heim Joint: Thread pitch: 5/8" - 18Ball Bore: 5/8"Ball width: .750"Ball end diameter: 1.500"Centerline length: 2.630"Static radial load rating: 17,955 lb Tube Adapter Bung: Thread: Female 5/8"-18Fits Tube Size: 1.25" OD. x .095 Wall x 1.06" ID High Misalignment Spacers .500" ID x .619" OD x .672" WCompatible with 1/2" bolt sizeTotal assembled width with HMS spacers: 1.500" CRAFTED FROM PREMIUM MATERIALS Our heim joints, tube adapters and misalignment spacers are made from heat treated chromoly steel, for maximum strength and reliability. AVAILABLE IN A VARIETY OF SIZES Our heim joint rod end kits are available in a variety of sizes: 1/2”, 5/8", 3/4”, 7/8”. All sizes come in either right-hand or left-hand thread configurations. HIGH MISALIGNMENT SPACERS High Misalignment Spacers keep your custom built links from binding even when components aren’t perfectly aligned. Take your custom suspension build to the next level with our top-quality rod end kits. Featuring chromoly heim joints, tube adapters, and high misalignment spacers, the perfect solution for fabricating 4-link setups, radius rods, and tie rods.Made from premium materials for precision and reliability. Heat treated chromoly heim joint body with a 52100 ball bearing wrapped in a kevlar/teflon liner offers extreme strength and smooth movement. Fully threaded chromoly tube adapter bung and high misalignment spacers maximize flexibility and maintain strength where it matters most.Available in several sizes and tubing wall thicknesses, in RHT or LHT, so you can find the perfect kit for almost any off-road or custom fabrication project. Whether you're building a 4-link hot rod suspension, UTV radius rods, sand rail tie rods, or a panhard rod on your rock crawler, our rod end kits provide the strength and reliability you need. Available in Several Configurations to fit Any Fabrication Project Single Joint Rod End Kit (1) Heim Joint (1) Jam Nut(1) Tube Adapter Bung(2) High Misalignment Spacers Panhard / Track Bar Rod End Kit (1) RHT Rod End Kit with misalignment spacers(1) LHT Rod End Kit with misalignment spacers Sway Bar Link Rod End Kit (2) RHT Rod End Kits with misalignment spacers(2) LHT Rod End Kits with misalignment spacers 4-Link Rod End Kit (4) RHT Rod End Kits with misalignment spacers(4) LHT Rod End Kits with misalignment spacers 4 Point Harnesses Booster Seat Rocker Switches Quick Release Fire Extinguisher Mounts Bead lock Wheels Spiked Lug Nuts Buying Options Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.9 out of 5 stars 23 4.5 out of 5 stars 3 4.6 out of 5 stars 521 — — — Price — no data $199.99$199.99 $22.99$22.99 $39.99$39.99 $499.00$499.00 $63.50$63.50 Fits Polaris RZR ✓ ✓ ✓ ✓ ✓ ✓ Fits Can-am ✓ ✓ ✓ ✓ Must select correct size Must select correct size Fits Yamaha YXZ ✓ ✓ ✓ ✓ X Must select correct size Fits Arctic Cat Wildcat ✓ ✓ ✓ ✓ X Must select correct size

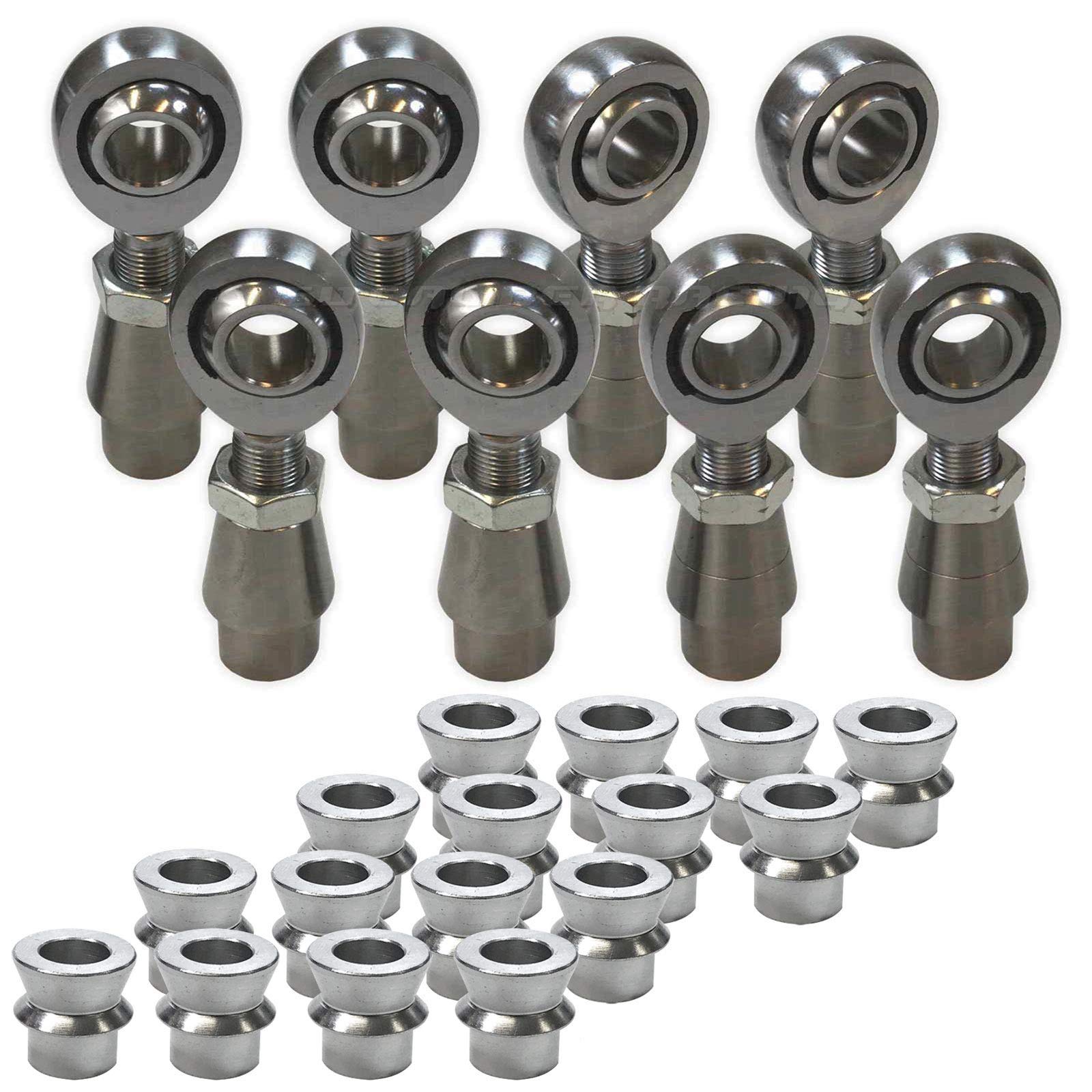

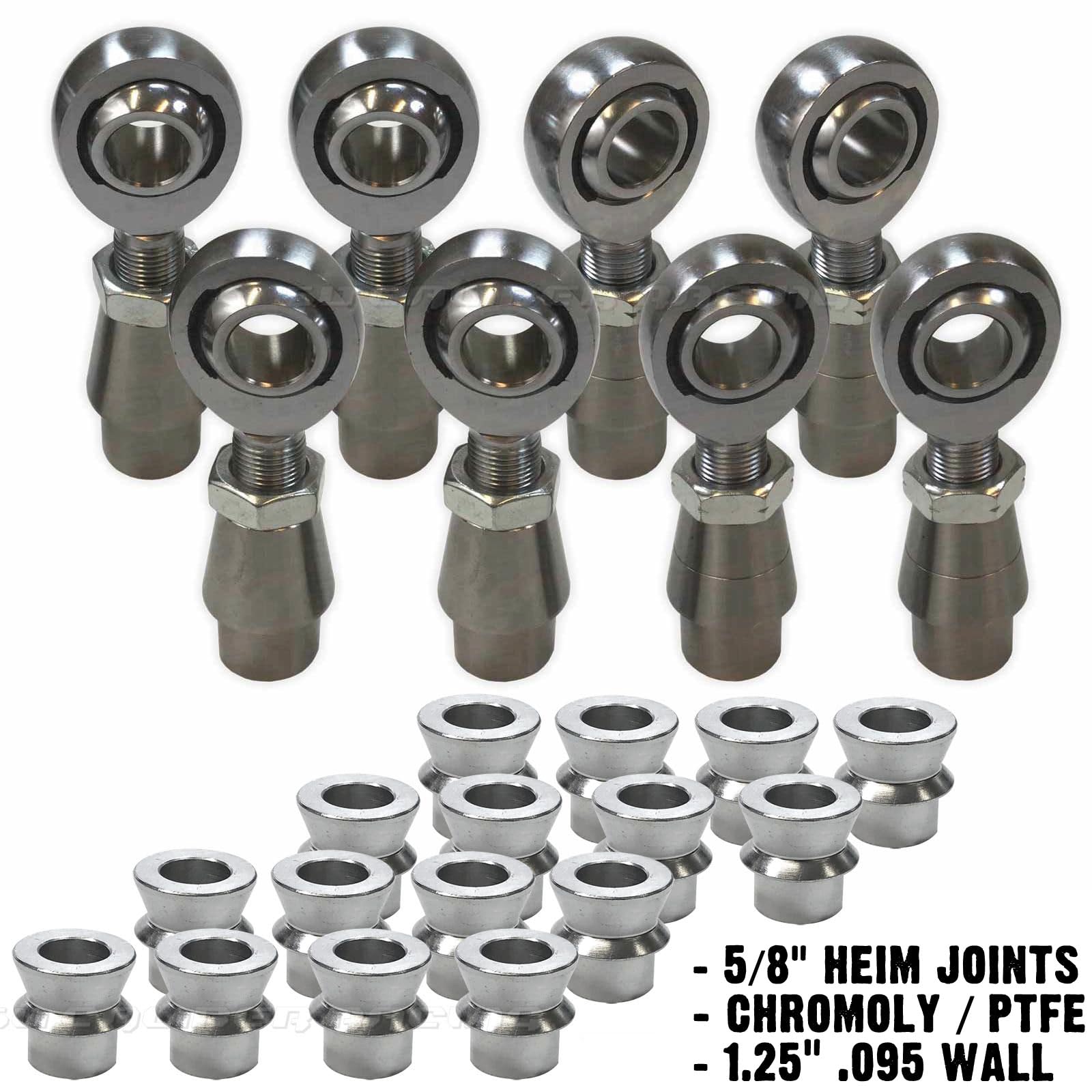

5/8 INCH 4-LINK ROD END KIT Includes (4) RHT and (4) LHT heim joints with jam nuts, (4) RHT and (4) LHT weld bung tube adapters and (16) HMS spacers

PRODUCT SPECIFICATIONS Heim joint 5/8"-18 Thread x 5/8" ● Bungs 1.25" OD x .095" Wall x 1.06" ID ● High Misalignment Spacers 5/8" x 1/2" bolt ● Total Assembled Width 1.500" ● Static Load Rating 17,955 lb

HEAVY DUTY CONSTRUCTION Constructed from heat-treated 4130 Chromoly, and feature a self-lubricating Kevlar/PTFE liner to reduce wear and shock. Chromoly weld bungs and HMS spacers add extra strength

EASY INSTALLATION The weld-in bungs are designed for effortless welding using either MIG or TIG processes, and every component is precision-crafted to ensure smooth mating and a seamless installation experience

CHOOSE FROM SEVERAL KITS 1/2", 5/8", 3/4", 7/8" heim joint kits, johnny joints, in sets of 1, 2, 4, or 8 rod ends, for fabricating custom suspension 4-link, radius rods, tie rods for Rock Crawlers, Off-road, Trucks, Race Cars, Sand Rails, UTVs
